Domino Ax150i Continuous Inkjet Printer
The Domino Ax150i Continuous Inkjet Printer meets the global demand for speed, user-friendliness, and precise drop placement
The Domino Ax150i continuous inkjet printer ensures fast and accurate marking of batch codes, expiration dates, and various other codes essential for product traceability.
Additionally, it can be configured to meet diverse application requirements.
The innovative interface and Domino QuickStep software platform are user-friendly and help prevent operator errors. The Ax150i model can be customized with optional packages, which can also be purchased later, to ensure performance tailored to specific production needs.
The user interface is simple and intuitive, allowing operators to modify information based on production needs with just a few commands.
Ax150i is the ideal solution for both startups and companies looking to expand their production.
Why choose the Domino Ax150i industrial continuous inkjet printer
Optimal interaction between printhead and ink. High-definition 9-drop font at the speed of a 7-drop font.

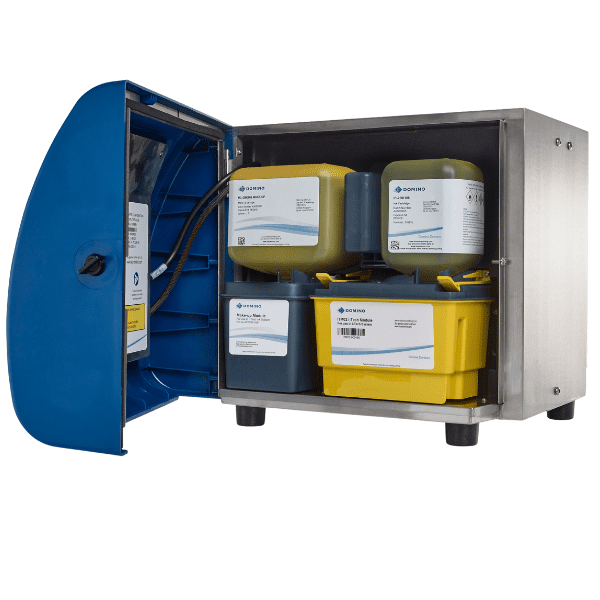

The Domino Ax150i inkjet printer’s cartridges allow for extended operation cycles and make ink replacement extremely quick and clean.
The new i-Pulse printhead in the Ax series controls the formation of each individual drop, ensuring maximum speed and precision. This guarantees accurate placement and ink savings, minimizing environmental impact.
Technical Info
Domino printers are compliant and sold in over 100 countries worldwide. Certifications: CE, NRTL, CB, and FCC 47CFR Part 15B.
Printhead
| Type | i-Pulse |
| Nozzle sealing technology | ✓ |
| Nozzle size | 60 µm |
| Maximum resolution (dpi) | 82 |
| Format | Straight |
| Conduit length | 3 m |
| Minimum conduit bend radius | 65 mm |
Cabinet
| Material | Stainless steel 304 (5 sides), Nylon (door) |
| Dimensions (WxHxD) | 400 x 373 x 393 (mm) |
| Dry weight | 16 kg |
| Power supply | 100-240 v : 4 A 50-60 Hz |
| Power consumption | 40 Watts (idle); 80 Watts (printing) |
| Product detection input (x1) | ✓ |
| Encoder input (x1) | ✓ |
| RFID | 13,56 MHz 1,3 uW ERP |
Inks
| Ink cartridge capacity | 825 ml |
| Make-up cartridge capacity | 1.200 ml |
Connectivity
| Domino Protocols | Codenet, Intercomm 0 |
| PC software package | QuickDesign V5 & V6 compatibile |
| Webserver | ✓ |
| Domino Cloud compatible* | ✓ |
*Requires optional Communication Package
Operation
| User interface | 7’’ color touchscreen (optional) |
| Software | QuickStep 3 |
| Operator-friendly | ✓ |
| One-button start and stop | ✓ |
Consumables
| Automatic cartridge recognition | ✓ |
| Intelligent level monitoring | ✓ |
| Make-up cartridge lifespan** | 171 hours |
| Cartridge replacement | Operator task – Takes 20 seconds – No line stoppage required |
Maintenance
| Maintenance type | Maintenance-free – ITM system |
| ITM replacement frequency° | 12 months |
| ITM replacement | Operator task – Takes less than 10 minutes of line stoppage |
Environment
| Operating temperature° | 5-45°C |
| Humidity | 0-90% RH |
| Protection rating (cabinet) | IP55 |
| Options for harsh environments | IP65 Printhead Cover (for washdown) Positive air pressure on the printhead (for dusty environments) |
* Speed, height, and number of lines declared using the Raster Extension Package.
** Make-up cartridge replacement frequency with MEK-based ink at 21°C.
^ Drop size may vary depending on the surface.
\° Depending on the type of ink.
Speed (m/s)*
| 1 Line – 5-drop characters | (fastest) Std DPI 5,1 – Max DPI 3,8 |
| 2 Lines – 7-drop characters | Std DPI 1,3 – Max DPI 0,9 |
| 2 Lines – 9-drop characters (high quality) | (high quality) Std DPI 1,0 – Max DPI 0,7 |
| 1 Line – 24-drop characters | (ideal for 2D Code) Std DPI 0,5 – Max DPI 0,4 |
Dimensions
| Maximum number of lines | 5 |
| Print height (in drops)* | Up to 32 drops |
| Print height (in mm)* | Up to 20 mm |
| Deposited print drop size^ | 0,31 mm |
Code Format
| Text | Full Unicode support |
| Graphic Import* | .bmp Integrated Logo Editor |
| 1D Barcodes | EAN 8, EAN 13, UPC A, UPC E, Code 39, Code 93, Code 128, Code 2 di 5, ITF-14, GS1-128 |
| 2D Barcodes | Datamatrix, QR Code, Dot Code, Han Xin, Postnet |
* (Speed and height declared using the Raster Extension Package)
Hardware Packages
Printer Status Package Option
4-color tower light output (x1)
Clean contact output for 4 printer status states (x1)
Communication Package Option
USB port on cabinet (x1)
Ethernet RJ45 port (x1)
RS232 Package Option RS232 Package Option
GPIO Package Option 4 inputs / 4 outputs (x1)
Performance Package
Raster Extension Package: High-speed and high-quality raster printing (HQ types)
