Domino Ax350i Continuous Inkjet Printer
Domino Ax350i: Consistently Sharp and Precise Coding
The Domino Ax350i continuous inkjet printer delivers perfect coding, even in the most challenging industrial processes. It reduces errors and costs and requires no maintenance.
Cartridges can be changed in just 20 seconds without stopping the production line. With an IP66-rated electronics compartment and an IP55-rated cabinet, the Domino Ax350i operates reliably even in harsh industrial environments with high humidity and exposure to water and other liquids.
Features like the ink level indicator, one-touch Start/Stop function, automatic cartridge recognition, and a 7” touchscreen for code input make the Domino Ax350i extremely user-friendly and easy to integrate into production lines.
The Domino Ax350i can print complex, high-quality codes even on high-speed lines, ensuring maximum quality and complete, secure traceability of your products.
Why Choose the Domino Ax350i Continuous Inkjet Industrial Printer?
Easy to use and, above all, easy to maintain, without operations and, most importantly, without the need to stop the production line to replace the cartridges. The Domino Ax350i can be easily integrated with other systems on the production line and is compatible with the most widely used communication protocols.
Excellent durability even in the most challenging production environments, such as those in the food or beverage industry.
Even on the fastest production lines, the Ax350i consistently performs precise coding.
Additionally, Domino inks remain flawless even after the most demanding post-print industrial processes, such as sterilization and temperature reduction.
The printer can be connected to the company network and linked to centralized systems (ERP), ensuring that your products are always marked with the correct information and remain traceable throughout the entire supply chain.
Technical Information
The Domino Ax350i meets compliance regulations and is sold in over 100 countries worldwide, with certifications including CE, NRTL, CB, and FCC 47CFR Part. 15B.
Printhead
| Type | i-Pulse |
| Nozzle Sealing Technology | ✓ |
| Nozzle Sizes | 60 µm – 75 µm – 40 µm – 50 µm |
| Maximum Resolution (DPI) | 82 – 64 – 110 – 98 |
| Formats | Straight, H90 e V90 – Straight, H90 e V90, Straight, Straight |
| Conduit Length | 4 m Standard – 6 m optional |
| Minimum Conduit Bend Radius | 65 mm |
Cabinet
| Material | 304 Stainless Steel Cabinet (5 Sides), Nylon (Door) |
| Dimensions (WxHxD) | 430 x 411 x 381 (mm) |
| Dry Weight | 22 kg |
| Power Supply | 100-240 v : 4 A 50-60 Hz |
| Power Consumption | 40 Watt (Idle); 80 Watt (Printing) |

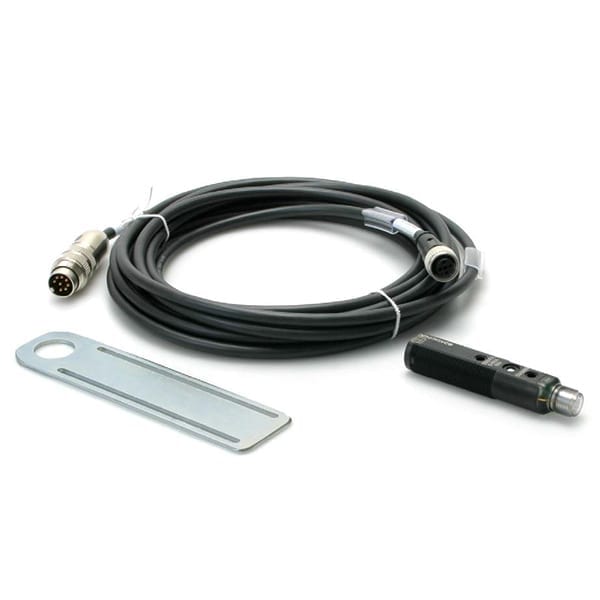

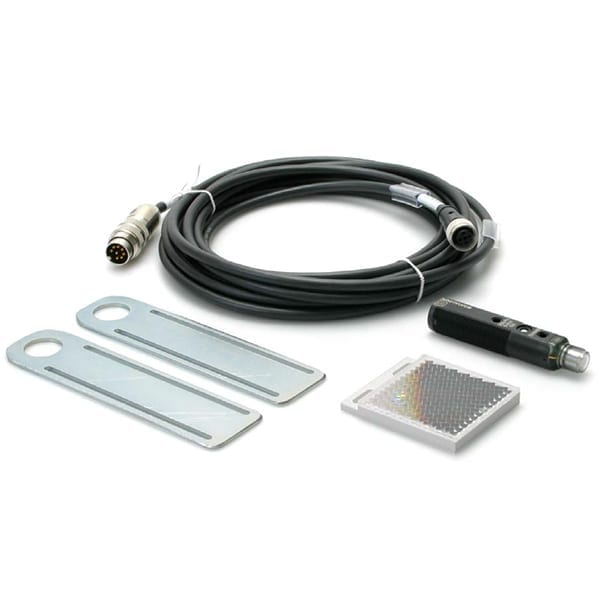

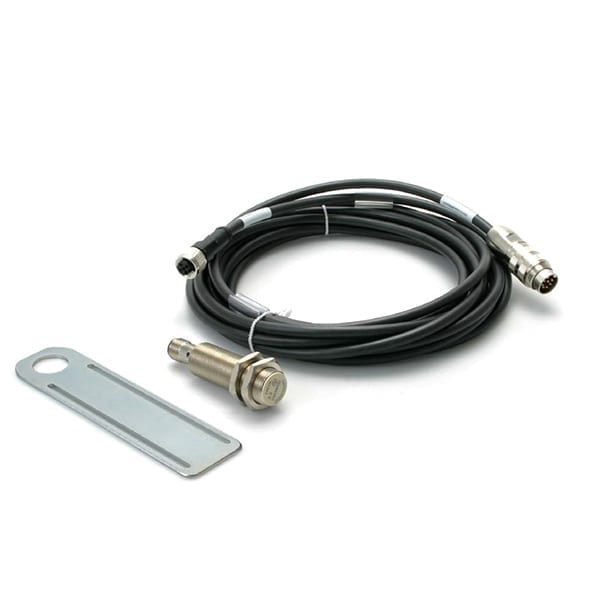

| Product Detection Input (x1) | ✓ |
| Encoder Input (x1) | ✓ |
| RFID | 13,56 MHz 1,3 uW ERP |
Inks
| Ink Cartridge Capacity | 825 ml – 55 mm (Heavy Duty Ink System) |
| Make-Up Cartridge Capacity | 1.200 ml |
Connectivity
| Domino Protocols | Codenet, Intercomm 0 |
| PC Software Package | QuickDesign V5 & V6 Compatible |
| Webserver | ✓ |
| Domino Cloud Compatible* | ✓ |
* Requires Optional Communication Package
Operation
| User Interface | 7’’ Color Touchscreen (Optional) – 10.4” Color Touchscreen (Optional) |
| Software | QuickStep 3 |
| Operator-Friendly | ✓ |
| One-Touch Start/Stop | ✓ |
Consumables
| Automatic Cartridge Recognition | ✓ |
| Intelligent Level Monitoring | ✓ |
| Make-Up Cartridge Lifespa** | 267 Hours |
| Cartridge Replacement | Operator Task – Requires 20 Seconds – No Line Stoppage |
Maintenance
| Maintenance Type | Maintenance-Free – ITM System |
| ITM Replacement Frequency° | 12 Months |
| ITM Replacement | Operator Task – Requires Less Than 10 Minutes of Line Stoppage |
Environment
| Operating Temperature° | 5-45°C |
| Humidity | 0-90% RH |
| Cabinet Protection Rating | IP66 Electronics Compartment (IP55 Cabinet) |
| Options for Harsh Environments | IP65 Printhead Cover (for Washdown), Positive Air on Printhead (for Dusty Environments), Dryer (for Humid Environments) |
*Speed, Height, and Number of Lines Declared Using the Raster Extension Package.
**Make-Up Cartridge Replacement Frequency with MEK-Based Ink at 21°C.
^ The drop size may vary depending on the surface
°Depending on Ink Type.
Speed (m/s)*
| 1 Line – 5-Drop Characters | (Fastest) Std DPI 7,2 – Max DPI 5,2 |
| 2 Lines – 7-Drop Characters: | Std DPI 2,0 – Max DPI 1,5 |
| 2 Lines – 9-Drop Characters (High Quality) | Std DPI 1,3 – Max DPI 1,0 |
| 1 Line – 24-Drop Characters (Ideal for 2D Code) | Std DPI 0,7 – Max DPI 0,5 |
Dimensions
| Maximum Number of Lines | 5 |
| Print Height* | (in Drops): Up to 32 Drops |
| Print Height* | (in mm): Up to 20 mm |
| Deposited Drop Size^ | 0,31 mm (60 μm) 0,40 mm (75 μm) |
Code Format
| Text | Full Unicode Support |
| Graphics | .bmp Import, Integrated Logo Editor |
| 1D Barcode | EAN 8, EAN 13, UPC A, UPC E, Code 39, Code 93, Code 128, Code 2 di 5, ITF-14, GS1-128 |
| 2D Barcode | Datamatrix, QR Code, Dot Code, Han Xin, Postnet |
*Speed and height declared using the Raster Extension Package.
Hardware Packages
Printer Status Package Option

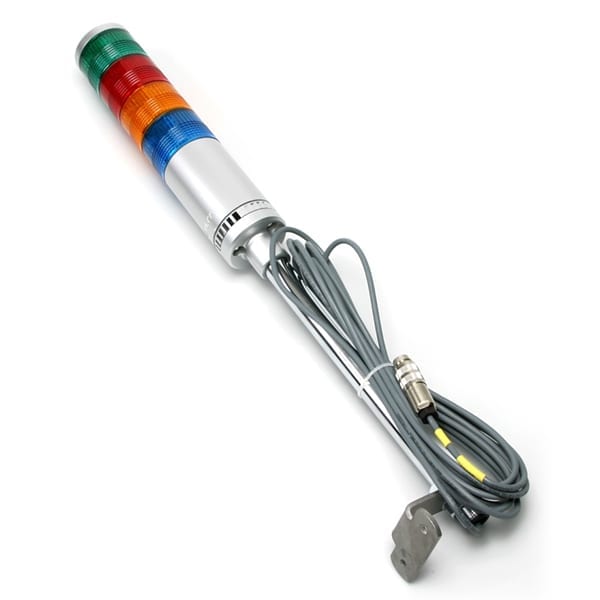

4-Color Tower Light Output (x1)
4 Printer Status Clean Contact Outputs (x1)
Communication Package Option
USB Port on Cabinet (x1)
Ethernet RJ45 Port (x1)
Extended Communication Package Option
USB Port on Cabinet (x1)
Remote Control Port (x1)
Ethernet RJ45 / Touchpanel 2 Port (x1)
RS232 Package Option
RS232 Port (x1)
GPIO Package Option
4 Inputs / 4 Outputs (x1)
Opzione Pacchetto I/O Esteso
2 Inputs / 4 Outputs (x1)
Extended I/O Package Option
High-Speed Raster (ST&HS Type) – Segmented High-Speed DDI Message Format – Script Creation
Professional Printing Package Option
Template etichette – Scansione Barcode per inserimento testo nel messaggio – Gestione accessi
Operator Assistance Package Option
Label Templates – Barcode Scanning for Text Input in Message – Access Management
Peltier Package Option
20% Reduction in Make-Up Consumption – Programmable Auto Shutdown of Printhead and Ink System to Reduce Consumption
