Domino Cx350i Large Character Inkjet Printer
The Perfect Solution for Secondary Packaging Coding in Industry 4.0

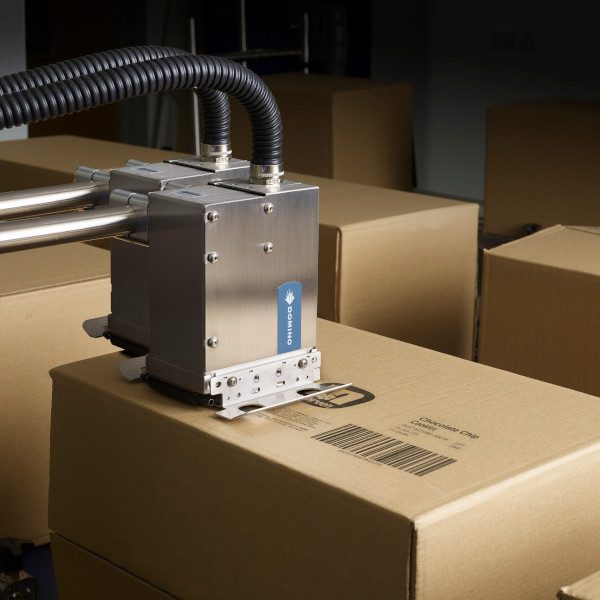

The Domino Cx350i is the intelligent large character inkjet printer that fully leverages the potential of direct marking on secondary packaging.
With the Domino Cx350i inkjet printer, you can enhance coding quality while reducing costs. Finally, you can avoid expenses for pre-printed packaging and labels by printing graphics, codes, and texts directly on the carton.
Choosing the Domino Cx350i means making a green choice, thanks to its eco-friendly inks made from vegetable oil and its advanced technology with adjustable print resolution for the best code quality with minimal ink consumption.
The coding automation software ensures maximum efficiency and integrates perfectly with barcode scanners and vision systems to guarantee the readability of every printed code.
Why Choose the Domino Cx350i Large Character Inkjet Printer?
The wide range of connectivity options ensures perfect integration with other technologies present in the company that use standard PLC interfaces, including Ethernet/IP™. The printer does not require compressed air or filter replacement.
Simple solutions for transferring text and information for integration with a variety of packaging and processing machines. The high capacity of the ink tank allows for longer autonomy and minimizes human intervention.
The Domino Cx350i large character inkjet printer does not require compressed air, has no label waste, and uses exclusively vegetable oil-based inks, always ensuring perfect, high-contrast codes. Ink can be added during production while the machine is running.
Variants
The Domino Cx350i large character inkjet printer is available with Horizontal and Vertical printhead variants, which increase the printing area for secondary packaging coding. Easy to integrate on the line thanks to their compact size, these printheads are the ideal solution for coding in industrial environments and can also print on plasterboard sheets.
Technical Information
Cabinet
| Cx-Base 2 Heads | Cx-Base 4 Heads | |
|---|---|---|
| Printheads (max.) 2 Internal Reservoir: 440 ml |
Printheads (max.) 4 Internal Reservoir: 760 ml |
|
| Dimensions | Length: 329.7 mm / Depth: 233.7 mm / Height: 489.5 mm
Cx-2 Heads Base: 13.55 kg, Cx-4 Heads Base: 15.03 kg (excluding power button, stop, connector cover, bracket) |
Length: 329.7 mm / Depth: 233.7 mm / Height: 489.5 mm
Cx-2 Heads Base: 13.55 kg, Cx-4 Heads Base: 15.03 kg (excluding power button, stop, connector cover, bracket) |
| Electrical Requirements | Input: 100-240VAC, 50-60 Hz, Heads: 2A | Input: 100-240VAC, 50-60 Hz, Heads: 3A |
| Connection Options | 1 x encoder input, 1 x I/O connector (4 x product presence sensor input, 5 x general-purpose input, 8 x general-purpose output, 3 x 24VDC output), 2 x USB (type A), 1 x RS232C, 2 x RJ-45 | 2 x encoder input, 2 x I/O connector (4 x product presence sensor input, 9 x general-purpose input, 12 x general-purpose output, 4 x 24VDC output, 3 x alarm contacts), 2 x USB (type A), 1 x RS232C, 2 x RJ-45 |
Printhead
| Dimensions | Length: 112.8 mm / Depth: 311.6 mm / Height: 190 mm / Weight: 4.22 kg |
| Electrical Requirements | 24VDC (supplied by the base cabinet) |
| Resolution | Horizontal max. 300 dpi, Vertical 150 dpi |
| Print Height | 65 mm max |

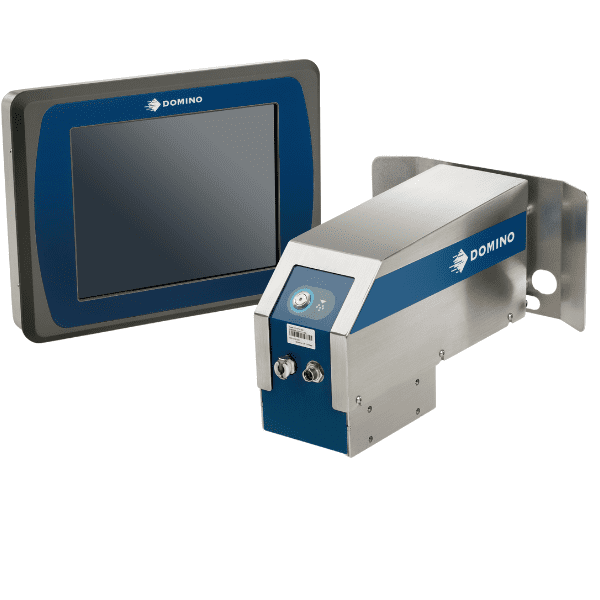

TouchPanel
| User Interface | 10.4” TouchPanel with QuickStep 3 software |
| Dimensions | Length: 320 mm / Depth: 45 mm / Height: 235 mm / Weight: 2.65 kg |
System Specifications
| Operating Temperature | 5°-40°C |
| Operating Humidity | 10%-90% RH (non-condensing, 10°C hourly increase) |
| Enclosure | Brushed stainless steel |
| Printhead and Cabinet Protection Rating | IP4X |
| Inks | High-contrast, eco-friendly vegetable oil-based inks available in 1.4 and 0.85-liter bottles |
| Communication | Ethernet / Dynamark protocols, EDC (serial, TCP, USB), optional: Ethernet/IP™ Protocol, Domino coding automation |
| Print Speed max. | 210 m/min. @100dpi; 100 m/min. @200dpi; 70m/min. @300dpi |
