Domino D320i Industrial CO₂ Laser Printer
The Laser Printer for Pharmaceutical Product Coding
The Domino D320i laser printer is the ideal solution for coding and marking pharmaceutical products, ensuring maximum traceability.
With the Pharma Option, the Domino D320i provides detailed reporting on every modification and password-protected access, ensuring compliance with 21-CFR Part 11 and GAMP regulations. This guarantees clean and secure laser marking for pharmaceutical products.
The Domino D320i laser printer can mark an unlimited number of text lines, in any orientation, with a wide variety of fonts and sizes.
It is particularly suited for printing graphic images, barcodes, and 2D codes, such as DataMatrix and QR Codes. Message creation and modifications are instantly updated in the system, and production data can be uploaded or downloaded directly via USB or Ethernet network from the control panel.
Additionally, the laser is compatible with Codentify® industrial solutions, enabling the creation of a unique 12-digit code, widely used for authentication and fiscal certification applications.
Why Choose the Domino D320i Industrial CO₂ Laser Printer?
The Domino D320i scan head can be rotated in 90-degree increments, allowing for multiple positioning options. Thanks to its compact size, it can be installed in tight spaces where most lasers cannot fit on production lines.
An optional IP65 version provides extra protection for the laser while maintaining its compact dimensions. The aluminum and stainless-steel frame ensures long-lasting performance, even in demanding industrial environments.
The i-Tech RapidScan technology increases laser marking speed by 20%, making the Domino D320i the ideal solution for high-speed production lines. Additionally, i-Tech RapidScan improves the engraving of complex codes, even on challenging materials.
Technical Information
| Domino D120i | Domino D320i | Domino D620i | |
|---|---|---|---|
| Laser Type | Fully sealed CO₂ Laser, MTBF 30,000 hours | Fully sealed CO₂ Laser, MTBF 30,000 hours | Fully sealed CO₂ Laser, MTBF 30,000 hours |
| Wavelength | 10.6 μm (9.3 μm for blue tube option) | 10.6 μm (9.3 μm for blue tube option, 10.2 μm for red tube option) | 10,6 μm |
| Installed Power | 10 W (approx. 8 W for blue tube option with λ 9.3 μm) | 30 W (approx. 20 W for blue tube option with λ 9.3 μm) | 60 W |
Laser Marking Features
| Characters per Second | 800* | 1500* | 2000* |
| Line Speed | 200 m/min.* | 400 m/min.* | 600 m/min.* |
| Number of Text Lines | Unlimited* | Unlimited* | Unlimited* |
| Character Height | From 0.6 mm to the full height of the marking field | From 0.6 mm to the full height of the marking field | From 0.6 mm to the full height of the marking field |
| Fonts | 24 fonts, Unicode with extensive selection of local characters | 24 fonts, Unicode with extensive selection of local characters | 24 fonts, Unicode with extensive selection of local characters |
| Marking Field | 58×58 mm, 68×68 mm, 84×84 mm, 102×102 mm, 136×136 mm | 58×58 mm, 68×68 mm, 84×84 mm, 102×102 mm, 136×136 mm, 180×180 mm | 58×58 mm, 68×68 mm, 84×84 mm, 102×102 mm, 136×136 mm, 180×180 mm |
| Focal Length | 80 mm, 100 mm, 120 mm, 150 mm, 200 mm |
80 mm, 100 mm, 120 mm, 150 mm, 200 mm, 250 mm |
80 mm, 100 mm, 120 mm, 150 mm, 200 mm, 250 mm |
| User Interface | Web-based GUI with optional TouchPanel; WYSIWYG message preview; pre-installed operator languages: Italian, English, German, French, Czech, Danish, Spanish, Finnish, Greek, Hungarian, Japanese, Dutch, Portuguese, Polish, Simplified Chinese, Korean, Romanian, Russian, Swedish, Slovak, Slovenian, Thai, Turkish, Arabic. | Web-based GUI with optional TouchPanel; WYSIWYG message preview; pre-installed operator languages: Italian, English, German, French, Czech, Danish, Spanish, Finnish, Greek, Hungarian, Japanese, Dutch, Portuguese, Polish, Simplified Chinese, Korean, Romanian, Russian, Swedish, Slovak, Slovenian, Thai, Turkish, Arabic. | Web-based GUI with optional TouchPanel; WYSIWYG message preview; pre-installed operator languages: Italian, English, German, French, Czech, Danish, Spanish, Finnish, Greek, Hungarian, Japanese, Dutch, Portuguese, Polish, Simplified Chinese, Korean, Romanian, Russian, Swedish, Slovak, Slovenian, Thai, Turkish, Arabic. |
| Operating System | Windows CE | Windows CE | Windows CE |
| Marking Software | Dynamark III | Dynamark III | Dynamark III |
| Scan Head | i-Tech head, mountable in multiple positions and orientations, including axial and radial mounting | i-Tech head, mountable in multiple positions and orientations, including axial and radial mounting | i-Tech head, mountable in multiple positions and orientations, including axial and radial mounting |
| Laser Housing | Stainless steel and anodized aluminum | Stainless steel and anodized aluminum | Stainless steel and anodized aluminum |
| Weight & Dimensions | 16.5 kg, 681x140x180 mm** | 22 kg, 776x140x180 mm** | 27.3 kg, 846x140x180 mm** IP65 30 kg, 946x140x180 mm** |
| Control Unit | Stainless steel construction | Stainless steel construction | Stainless steel construction |
| Weight & Dimensions | 14.5 kg, 430x371x154 mm (IP55 version: 17.5 kg, 541x401x229 mm) | 14.5 kg, 430x371x154 mm (IP55 version: 17.5 kg, 541x401x229 mm) | 27 kg, 430x371x309 mm (IP55 version: 34 kg, 541x401x458 mm) |
| Power Cable Length | 4.5 m, optional 9m | 4.5 m, optional 9m | 4.5 m, optional 9m |
Inputs & Outputs
| Product Detection Inputs | NPN/PNP/24V sensor | NPN/PNP/24V sensor | NPN/PNP/24V sensor |
| Product Speed Detection | Differential encoder or static signal | Differential encoder or static signal | Differential encoder or static signal |
| Signal I/O | Laser Ready, Laser Busy, fume extractor control, compressed air control | Laser Ready, Laser Busy, fume extractor control, compressed air control | Laser Ready, Laser Busy, fume extractor control, compressed air control |
| Interfaces | RS232, Ethernet (10/100 Mbit), USB | RS232, Ethernet (10/100 Mbit), USB | RS232, Ethernet (10/100 MBit), USB |
| Electrical Characteristics | 88-132 V / 170-264 V, 47-63 Hz 1050 Watt / 1700 Watt (D620i) | 88-132 V / 170-264 V, 47-63 Hz 1050 Watt / 1700 Watt (D620i) | 88-132 V / 170-264 V, 47-63 Hz 1050 Watt / 1700 Watt (D620i) |
Features
| Control Unit Options | Standard version (air-cooled) and IP55 version for added protection | Standard version (air-cooled) and IP55 version for added protection | Standard version (air-cooled) and IP55 version for added protection |
| Laser Heads | Standard version (air-cooled), IP65 version (compressed air cooling), and D620i IP65 version (water-cooled) | Standard version (air-cooled), IP65 version (compressed air cooling), and D620i IP65 version (water-cooled) | Standard version (air-cooled), IP65 version (compressed air cooling), and D620i IP65 version (water-cooled) |
| Operating Temperature | 5° to 40°C (higher temperature versions available upon request) | 5° to 40°C (higher temperature versions available upon request) | 5° to 40°C (higher temperature versions available upon request) |
| Operating Humidity | Max. 90%, non-condensing | Max. 90%, non-condensing | Max. 90%, non-condensing |
| Optional Features | Aiming beam, User I/O port kit, fume extraction hood, USB backup kit, rack mounting kit, serial connection option with other units, user data port, i-Tech RapidScan technology | RAiming beam, User I/O port kit, fume extraction hood, USB backup kit, rack mounting kit, serial connection option with other units, user data port, i-Tech RapidScan technology | Aiming beam, User I/O port kit, fume extraction hood, USB backup kit, rack mounting kit, serial connection option with other units, user data port, i-Tech RapidScan technology |
*The number of characters per second and maximum line speed depend significantly on coding type and substrate.
** Dimensions listed for the shortest version of each model.
Great Flexibility Even in Small Spaces
The new D-Series laser markers offer 360-degree flexibility. The compact and fully adjustable i-Tech scan head allows the D-Series lasers to be installed even in the tightest spaces.
A new IP65-rated version provides exceptional protection for installations in harsh environments. With highly flexible connectivity and a user-friendly interface, the D-Series can be controlled from any workstation, including remote access.
Wide Range of Applications
The D-Series laser markers can engrave unlimited lines of text in any orientation, offering a wide selection of fonts and sizes.
They are particularly suited for marking graphic images, barcodes, and 2D codes, including DataMatrix and QR Codes.
All markings are permanent, suitable for a vast range of materials, and ideal for high-speed production lines.
Enhanced Flexibility for Seamless Integration
Adaptability is crucial, which is why we designed the D-Series lasers to be compact.
The modular design ensures easy installation, allowing for simple integration into production lines.
- Easy installation: The integrated mounting rails and compact dimensions make installation secure and straightforward.
- Maximum flexibility: The i-Tech scan head is connected to the laser tube via a multi-position mount, allowing it to be rotated in 90-degree increments for various positioning options.
- Space-saving design: The compact size enables installation in locations where most laser markers cannot fit.
Increased Efficiency, Less Downtime
The D-Series markers can be controlled via:
- The intuitive Touch Panel
- A web interface on any industrial PC
- The production line’s interface for maximum integration flexibility
User-Friendly Operation
Once logged in, setup is quick, and laser marking message creation and modifications are instantly updated in the system.
Production data can be uploaded or downloaded directly from the control panel via USB or Ethernet network.
Built to Last
An optional IP65 version provides additional protection, ensuring durability in harsh industrial environments. The aluminum and stainless-steel frame guarantees long-lasting performance.
Uncompromising Speed & Performance
i-Tech RapidScan technology increases laser marking speed by 20%, making the D-Series perfect for high-speed lines.
Optimized for complex codes, improving engraving on challenging materials.
Pharma Option: Ensures detailed reporting of modifications and secure password-protected access, compliant with 21-CFR Part 11 and GAMP regulations.
Can be provided with a validation package to ensure compliance with the strictest standards.
Codentify® compatibility: Supports 12-digit unique codes used in authentication and fiscal certification applications.
Fume Extraction Solutions: Proper fume and particulate extraction is essential for a clean and safe working environment.
The Domino DPX fume extraction system integrates seamlessly with the D-Series lasers, providing a complete, efficient, and simple solution.
Variants
10 Std – 10 Blue Std
15 Std – 15 Blue Std
SL

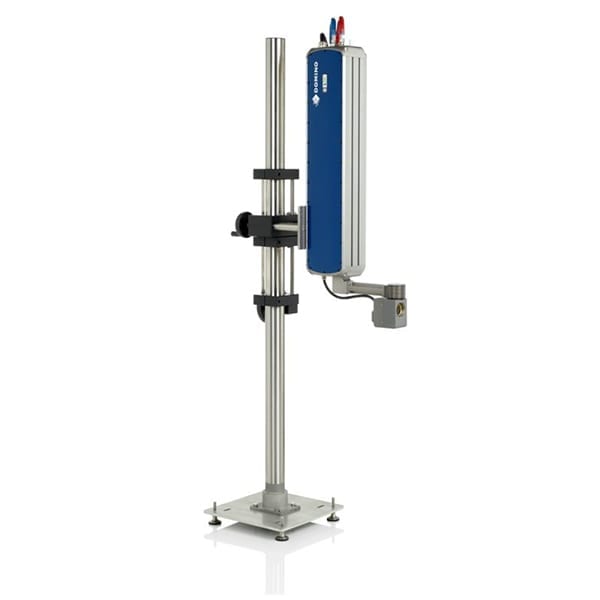

Accessori
