Domino Dx360i CO₂ Laser Printer
Domino Dx360i: Fast, Flexible, and Built to Last
With the Domino Dx360i CO₂ Laser Printer, you have a coding solution ready to meet future regulations, ensuring compliance with GS1 standards and the ability to mark even larger and more complex scannable codes, such as GS1 QR codes.
The Domino Dx360i is an ideal solution for a wide range of coding needs on production lines, enabling permanent traceability codes on products and packaging.

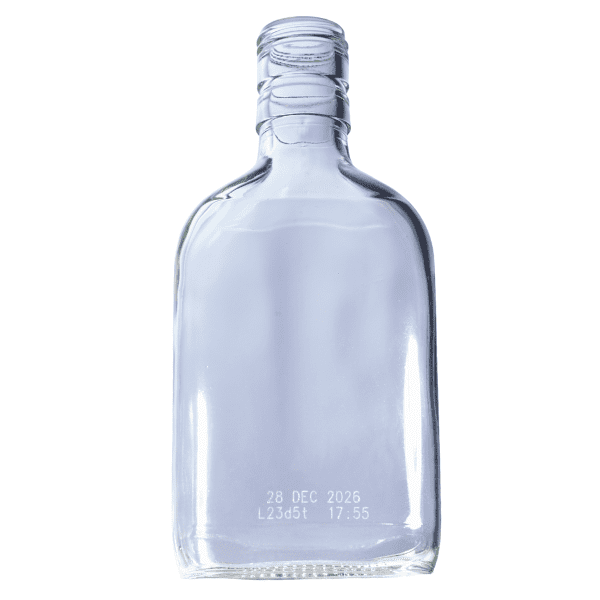

This CO₂ laser printer handles everything from simple expiration date codes to complex formats, including 1D and 2D codes, on a wide range of materials such as plastic (PET, PP), glass, paper, and cardboard at high speeds.
Why Choose the Domino Dx360i CO₂ Industrial Laser Printer?
More than 50 standard beam delivery options, a 360° rotatable scan head, and customizable configurations for specific requirements.
The Domino Dx360i laser printer integrates effortlessly with ERP, WMS, and MES systems. Dusty, humid, and sticky environments are not an issue thanks to its IP54/IP65-certified print heads and an IP55-certified controller.

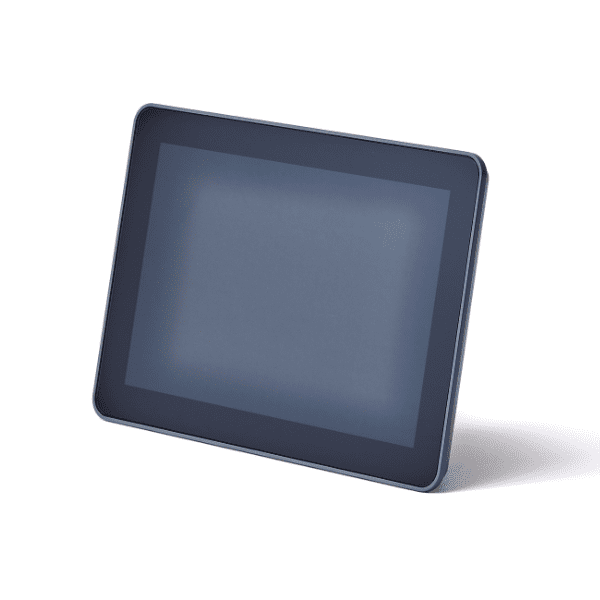

The web-based interface works on all standard browser-enabled devices and is consistent across the entire Domino Series X product range. A modern touch panel option is also available.
Technical Information
Laser Type
| Dx260i | Dx360i | Dx660i | |
|---|---|---|---|
| Laser technology | CO₂ | CO₂ | CO₂ |
| Laser source | 20W, wavelengths 9.3, 10.2, 10.6μm | 30W, wavelengths 9.3, 10.2, 10.6μm | 60W, wavelengths 9.3, 10.2, 10.6μm |
| Expected lifetime | 50.000h MTBF | 50.000h MTBF | 50.000h MTBF |
Coding Format
| Coding content | Laser optimised fonts for high-speed marking and standard industrial fonts. Graphics, logos, standard industrial machine readable code (1D, 2D) formats (DataMatrix, GS1, QR). Intuitive GS1 Digital Link support. Supporting traceability with serialisation data, sequential and batch numbering. Synchronized clock / Network Time Protocol support (NTP). |
| Focal length | from 80mm to 600mm |
| Marking field | from min. 57x57mm2 to max. 379x582mm2 |
| Advanced Features | Aiming beam, Aim & Code |
| User Interface | Interfaccia utente web-based, possibilità di configurare più punti di accesso paralleli, pannello touch opzionale da 10,1’’ |
System Specification
| Scan head orientations | Multitude of scan head orientations including 360° rotatable variant. More than 50 beam orientation variants. Additionally support for customisation and solution integration. |
| Ingress Protection | Laser module: IP54 fan cooled, optional IP65 compressed air cooling. Controller: IP55 |
| Operating temperature | 5˚C – 45˚C |
| Operating humidity | max. 90% RH, non-condensing |
| Electrical supply | multivoltage 90-264V, 50/60Hz |
Input and Outputs, Interfaces
| Inputs/outputs | Multiple inputs and outputs available e.g. extractor, compressed air-kit, encoder, product detect (NPN, PNP), beacon and interlocks, standard GPIO, additional optional GPIO available. |
| Interfaces/Protocols | Ethernet, USB, Dynamark Protocol, EtherNet/IP™ |
Options
| Accessories | Extraction including optimised shrouds, airknife for lens cleaning, multiple brackets, cables and stands for integration support |
| Certification | Marking: CE**, cTÜVus, UKCA / Fulfills requirement: NRTL, ROHS, FDA listed, EMC, FCC. |
** Partly Completed Machinery as per Machinery Directive (2006/42/EC), CE marking according to ROHS (2011/65/EU) and EMC(2014/30/EU)
