Domino F230i Industrial Fiber Laser Printers

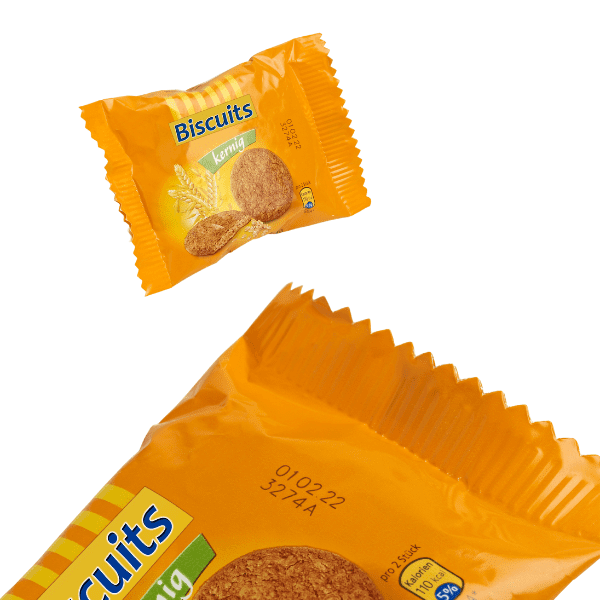

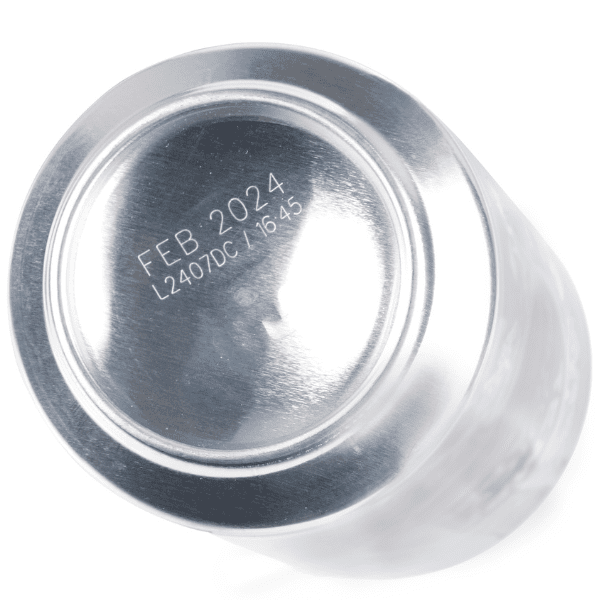

The Domino F230i CP and EP fiber laser printers are perfect for marking plastics, metals, and flexible packaging
They provide high-precision laser marking on a wide range of materials while ensuring maximum efficiency in product coding operations.
Thanks to their power class and wavelength, the F230i CP and F230i EP models deliver optimal results tailored to your specific coding needs.
Precision laser adjustment is crucial for marking various substrates, including dark plastics and multilayer flexible films. The F-Series offers three CP models using two waveform options, while the F230i EP comes standard with Pulse Selector technology, allowing selection from 40 waveform options for optimal calibration based on the material.
Why Choose the Domino F230i Fiber Laser Printer?
Long-Lasting Performance: Designed for durability, the Domino F230i CP and EP laser printers have a production lifespan of up to 12 years.
Increased Production Efficiency: The Domino F230i lasers significantly enhance production uptime while minimizing repair costs.
Eco-Friendly Operation: The Domino F230i laser printers operate without consumables such as ribbons, chemical fluids, solvents, or acids.
Technical Information
F230i CP
| Laser Type | Pulsed Fiber Laser |
| Selectable Waveforms | 2 |
| Laser Wavelength | 1059-1065 nm |
| Laser Power (Peak Power) | 20W |
| Laser Source Lifespan (MTBF) | 100.000 h |
| Internal Laser Pointer |
Wavelength:
|
| Coding Speed | High-speed applications (dependent on substrate, code, and step) |
| Fonts & Text | Optimized for high-speed laser marking, including standard fonts, multilingual, and Unicode |
| Graphics & Logos | *.bmp (monochrome), *.plt, *.dxf |

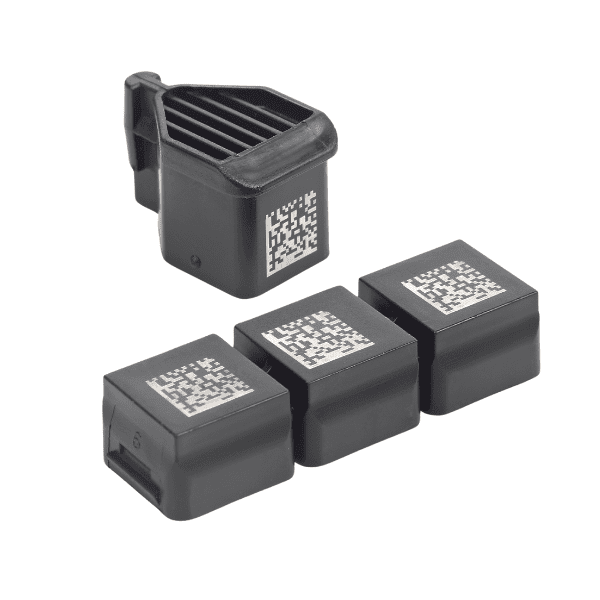

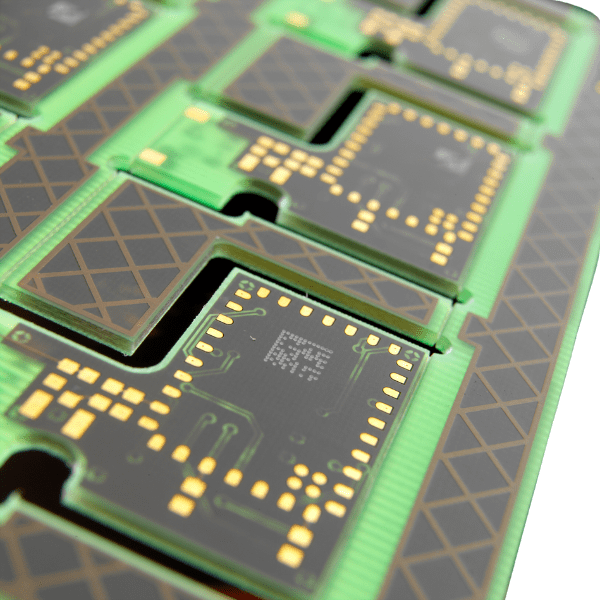

| Machine-Readable Codes | Over 60 types of linear barcodes and 2D Data Matrix codes; GS1 supported |
| Code Content | Supports traceability and serialized codes; configurable data, counters, and time formats |
| Focal Length / Spot Size | 160mm/118x118mm, 250mm/187x187mm, 300mm/229x229mm |
| Laser Head Dimensions & Weight | 80x141x465 mm – 7kg |
| Controller Dimensions (WxDxH) & Weight | 430x471x308 mm – 37.6 kg |
| Integration | i-Tech head installable in multiple positions and orientations, including axial and radial mounting |
| Operating Temperature | 5° / 40°C |
| Operating Humidity | Max. 90% RH, non-condensing |
| Laser Head Protection Rating | IP65 |
| Controller Protection Rating | IP43 (air-cooled) |
| Electrical Requirements | 100 – 240VAC, 50/60Hz |
| Power Consumption | max. 3.5A/350VA |
| User Interface | Web-based GUI (optional TouchPanel); WYSIWYG message preview; 25 pre-installed operator languages |
| Software | QuickStep2 with Dynamark4 |
| Product Detection Inputs | NPN / PNP / 24V Sensor |
| Product Speed Detection | Differential encoder or static signal |
| Signal Inputs & Outputs | Multipli input e outputs del controller (es. estrattore fumi, kit aria compressa, raffreddamento ad acqua, encoder, rilevazione prodotto, allarmi e interlocks). Segnali di Output Laser pronto, laser occupato, compilazione ok e codifica effettuata. Input disponibili per start, laser controllo codifica e logiche programmabili |
| Interfacce | USB, RS232, EtherNet (10/100 Mbit), EtherNet/IP™ (opzionale) |
| Opzionali | Kit Porte I/O; otturatore; kit connessione cavi (4.5 m, 9 m); USB backup/restore kit; Lampada allarmi 4 colori; Kit velocità; Chiusura porte; Opzione Pharma |
| Accessori | Kit di montaggio in Rack da 19; Laser stand; Sistema di estrazione fumi |
All dimensions are expressed in millimeters. The drawing is not to scale and is for illustrative purposes only. Domino reserves the right to modify the design, layout, or product specifications without prior notice. Some of the information in this brochure is general in nature, and the customer should verify its applicability to their specific needs.
F230i EP
| Laser Type | Pulsed Fiber Laser |
| Selectable Waveforms | 40 |
| Laser Wavelength | Laser 1059-1065 nm |
| Laser Power (Peak Power) | 20W |
| Laser Source Lifespan (MTBF) | 100,000 h |
| Internal Laser Pointe |
Wavelength:
|
| Coding Speed | High-speed applications (dependent on substrate, code, and step) |
| Fonts & Text | Optimized for high-speed laser marking, including standard fonts, multilingual, and Unicode |
| Graphics & Logos | *.bmp (monocromatico), *.plt, *.dxf |
| Machine-Readable Codes | Over 60 types of linear barcodes and 2D Data Matrix codes; GS1 supported |
| Code Content | Supports traceability and serialized codes; configurable data, counters, and time formats |
| Focal Length / Spot Size | 160mm/118x118mm, 250mm/187x187mm, 300mm/229x229mm |
| Laser Head Dimensions & Weight | 80x141x465 mm – 7kg |
| Controller Dimensions (WxDxH) & Weight | 430x471x308 mm – 37,6 kg |
| Integration i-Tech Head | Installable in multiple positions and orientations, including axial and radial mounting |
| Operating Temperature | 5° / 40°C |
| Operating Humidity | Max. 90% RH, non-condensing |
| Laser Head Protection Rating | IP65 |
| Controller Protection Rating | IP43 (air-cooled) |
| Electrical Requirements | 100 – 240VAC, 50/60Hz |
| Power Consumption | Max. 3.5A/350VA |
| User Interface | Web-based GUI (optional TouchPanel); WYSIWYG message preview; 25 pre-installed operator languages |
| Software | QuickStep2 with Dynamark4 |
| Product Detection Inputs | NPN / PNP / 24V Sensor |
| Product Speed Detection | Differential encoder or static signal |
| Signal Inputs & Outputs | Multiple I/O controller inputs/outputs (e.g., fume extractor, compressed air kit, water cooling, encoder, product detection, alarms, interlocks).
|
| Interfaces | USB, RS232, Ethernet (10/100 Mbit), Ethernet/IP™ (optional) |
| Optional Features | I/O Port Kit, Shutter, Cable Connection Kit (4.5 m, 9 m), USB Backup/Restore Kit, 4-Color Alarm Lamp, Speed Kit, Door Lock, Pharma Option |
| Accessories | Rack Mounting Kit, Laser Stand, Fume Extraction System |
All dimensions are in millimeters. Illustrative drawing, not to scale. Domino reserves the right to modify product design, specifications, or features without prior notice. Customers should verify applicability for their specific needs.
The F-Series: High-Quality Coding with Reduced Costs
The F-Series laser printers ensure top-quality coding while reducing both acquisition and operating costs.
The Total Cost of Ownership (TCO) of this pulsed fiber laser is highly competitive, allowing for significant cost savings in product coding and marking:
- Fast installation
- Minimal energy consumption
- No consumables (inks, ribbons…)
- Long-lasting lens
Domino’s fiber laser technology is highly versatile and optimized for a wide range of industrial sectors.
