Domino G50i Thermal Inkjet Printer
Domino G50i: Designed for Primary and Secondary Packaging Coding
The Domino G50i thermal inkjet printer is the ideal solution for high-speed production lines. It is suitable for coding products on flat surfaces, flexible films before forming and sealing, and well-guided boxes (where there is no movement variation or transport instability). The most common applications include, but are not limited to, fast-moving consumer goods (FMCG), personal care, and food packaging.
The Domino G50i prints alphanumeric codes and codes readable by scanners and vision systems with high resolution up to 600×600 dpi. It can code at speeds of up to 76 m/min at 300×300 dpi, including QR codes, DataMatrix, 1D barcodes with high readability, and text messages containing extensive information for packaging.
Domino’s water-based and ethanol-based ink options are designed for both porous and non-porous substrates, including paper, cardboard, plastic, metal, films, and flexible packaging materials.
With no complex installation and no maintenance required, once the Domino G50i is installed, all that is needed is to replace the ink cartridge inside the printhead when it runs out.
Additionally, the printer can be connected to a checkweigher via the communication port for enhanced production line integration.
Why Choose the Domino G50i Thermal Inkjet Printer?
The Domino G50i can print data directly from a database, allowing each print to be unique. This enables item-level coding and supports anti-counterfeiting applications.
Thanks to its intuitive user interface, users can create and modify codes via the HMI or by using a web browser directly from a PC, smartphone, or tablet. Additionally, codes can be uploaded via the USB port on the HMI.

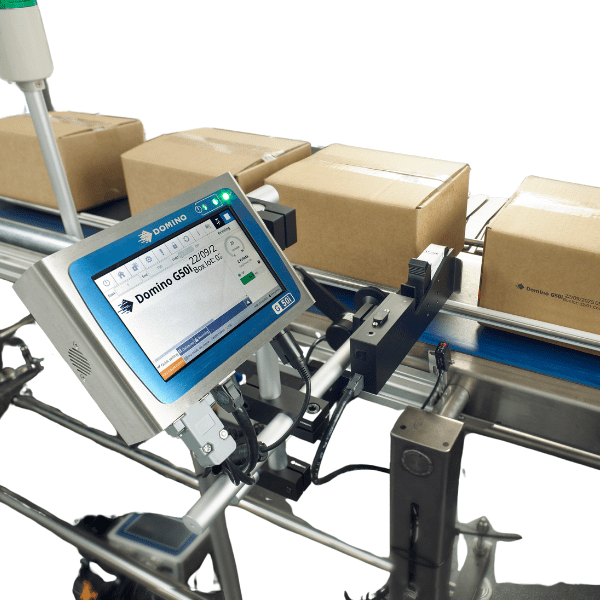

The 5-inch color touchscreen display provides a clear and user-friendly experience. The remote printhead of the Domino G50i thermal inkjet printer allows for both vertical and horizontal installation, making it easy to integrate into existing production lines.
Technical Information
Domino printers are compliant and sold in more than 100 countries worldwide. CE, NRTL, CB and FCC 47CFR Part. 15B certifications.
| Controller dimensions | 155 mm x 111.6 mm x 44.6 mm |
| Controller weight | 622 g |
| Print head dimensions | 216.4 mm x 66.2 mm x 49.1 mm |
| Print head weigh | 412.4 g |
| Print height | Up to 26,1mm |
| Resolution | Max 600×600 dpi |
| Print speed | Max 76 m/min a 300×300 dpi |
| External connection options | External sensor, echo, alarm column |
| Power supply | AC 100V-240V, 50/60Hz, DC 24V 2.5A |
| Controller operating temperature | +5 to +50°C |
| Controller relative humidity | 90% non-condensing |
| Controller casing | Brushed aluminium |
| Inks | A range of water and ethanol based inks for porous and non-porous substrates. |
| Communication Protocol | TCP/IP (RJ45) and COM (RS485) communication protocol for databases, barcode scanners, checkweighers, etc. |
| User interface | 5” LCD touchscreen |
| Coding Options | Text, counter; Pack/batch; Date/time; Expiry date; Julian date; Shiftcode; Images; Database 1D and 2D barcodes (Code 11, Code 39, Code 128, EAN, QR, Data Matrix, GS1 DataMatrix |
| Printable fonts Languages | Windows true fonts |
This product has a quality management system, which means it will only work with genuine Domino cartridges and uses dynamic security measures to prevent the use of non-Domino cartridges. Circuitry updates will be released from time to time by Domino to maintain the quality management system.
