Domino R550 Vision System
The Domino R550 vision system enables simplified automated inspection of coding and marking
The Domino R550 vision system enables simplified automated inspection of coding and marking.
It verifies the presence, position, and quality of codes on your product packaging. Easy to integrate and operate, it is designed for high-speed production lines (up to 60,000 pieces per hour) and fully automated environments in the Food, Beverage, and Cosmetics sectors.
The Domino R550 is a turnkey solution that minimizes waste and reduces the risk of batch recalls.
With the Domino R550, you can:
- Verify the presence and position of the code
- Perform character counting
- Execute MRC (Code Readability Verification)
- Check OCR/OCV content accuracy
Why Choose the Domino R550 Vision System?
High-Speed Integration: Designed for quick integration into high-speed production lines (up to 60,000 pieces per hour).
Future-Proof Hardware: Built to support seamless integration and future software upgrades from developers.
Maximum Precision & Compatibility: Delivers optimal accuracy with all Domino printers and is fully compatible with third-party products.
Technical Information & Variants
| R550 Series | |
|---|---|
| Code Inspection Tools | • Code Presence Verification • Code Position Verification • Character Count • MRC Control (Code Readability Verification) |
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240V AC, 50-60 Hz – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features | • Integrated Printer & Vision System Interface via a single Control Panel • High-Speed Reject Tracking System: LInK |

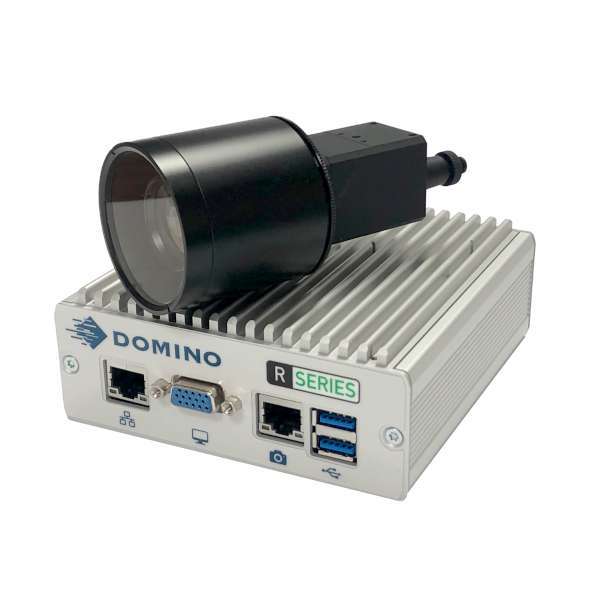

| Camera GE-1920IP | |
|---|---|
| Resolution | 1920 x 1080 |
| Max Frame Rate | 52 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | Nominal 0.16 mm (minimum bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| R550 Series | |
|---|---|
| Code Inspection Tools | • Code Presence Verification • Code Position Verification • Character Count • MRC Control (Code Readability Verification) |
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240V AC, 50-60 Hz – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features | • Integrated Printer & Vision System Interface via a single Control Panel • High-Speed Reject Tracking System: LInK |
| Camera GE-2448IP | |
|---|---|
| Resolution | 2448 x 2048 |
| Max Frame Rate | 24 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | Nominal 0.16 mm (minimum bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| R550 Series | |
|---|---|
| Code Inspection Tools | • Code Presence Verification • Code Position Verification • Character Count • MRC Control (Code Readability Verification) |
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240V AC, 50-60 Hz – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features | • Integrated Printer & Vision System Interface via a single Control Panel • High-Speed Reject Tracking System: LInK |

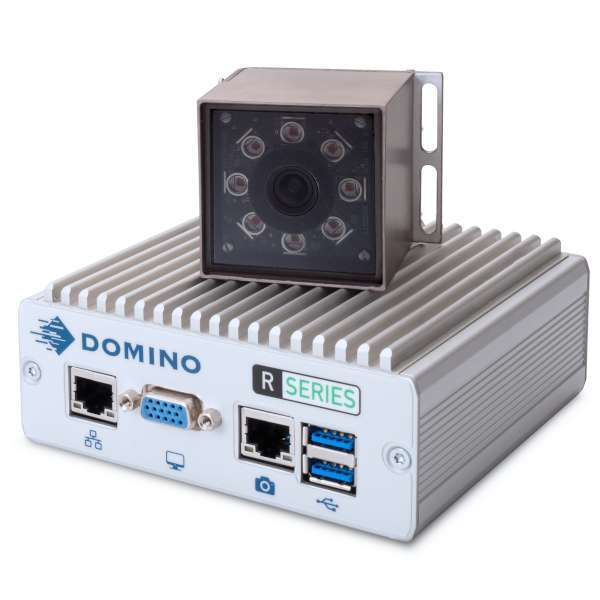

| GR2X-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate | 50 FPS |
| Field of View | 70 mm x 55 mm |
| Working Distance | 50 mm |
| Illumination | Integrated, selectable options: • Red LED 630 nm (polarized) • White LED (polarized) |
| Minimum 1D Barcode Size | 0.16 mm (minimum bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Dimensions | 50 mm x 50 mm x 47 mm |
| Protection Rating | IP65 (Certification Under Validation) |
| R550 Series | |
|---|---|
| Code Inspection Tools | • Code Presence Verification • Code Position Verification • Character Count • MRC Control (Code Readability Verification) |
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240V AC, 50-60 Hz – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features | • Integrated Printer & Vision System Interface via a single Control Panel • High-Speed Reject Tracking System: LInK |

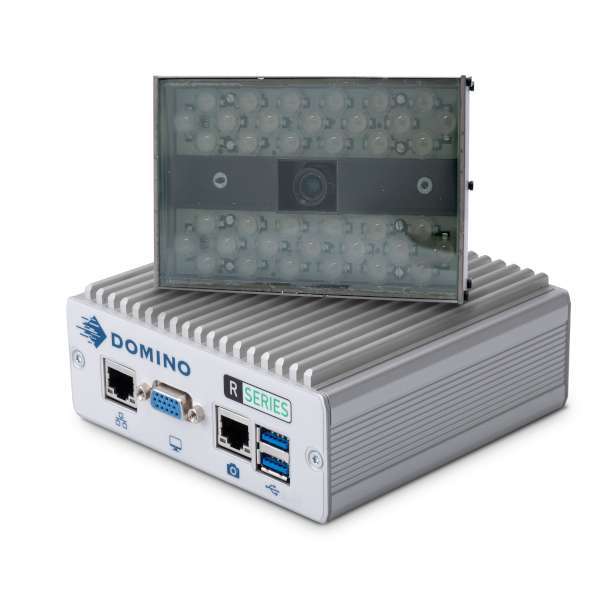

| GR6-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate | 50 FPS |
| Field of View | 112 mm x 88 mm |
| Working Distance | 76 mm |
| Illumination | Integrated: 630 nm Polarized LED |
| Minimum 1D Barcode Size | 0.3 mm (minimum bar width) |
| Minimum 2D Barcode Size | 0.46 mm/cell (minimum module size) |
| Minimum OCR Character Height | 2.27 mm |
| Dimensions | 121 mm x 76 mm x 52 mm |
| Protection Rating | IP65 (Certification Under Validation) |
