Domino U510 UV Laser Printer
The Ideal UV Laser for Permanent Coding on Rigid Plastics and Films
The Domino U510 UV laser printer is designed for permanent and highly precise coding on the latest plastic packaging materials.
This UV laser printer can directly mark white and colored substrates without requiring specific laser coding windows. The super-compact, all-in-one Domino U510 is Industry 4.0 ready and easily integrates into modern production lines.
The Domino U510 preserves the protective barrier by creating coding through a photochemical reaction in the outermost layer of the packaging material, without causing damage. Its short-wavelength laser pulse and high absorption rate minimize thermal stress and soot particle formation.

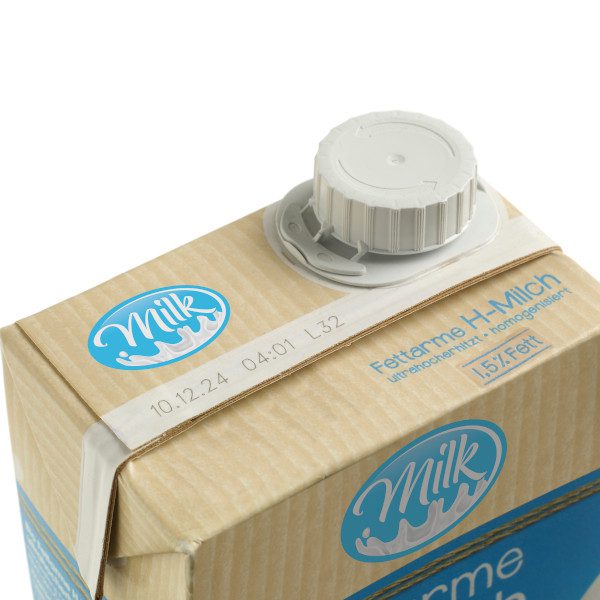

Even thin and delicate packaging films can be safely coded. For white and colored plastics, the laser pulse reacts with titanium dioxide (TiO₂) to produce high-contrast codes. Since TiO₂ is present in many plastics, the laser can mark anywhere on these products without requiring additives or pre-activated laser fields.
Why Choose the Domino U510?

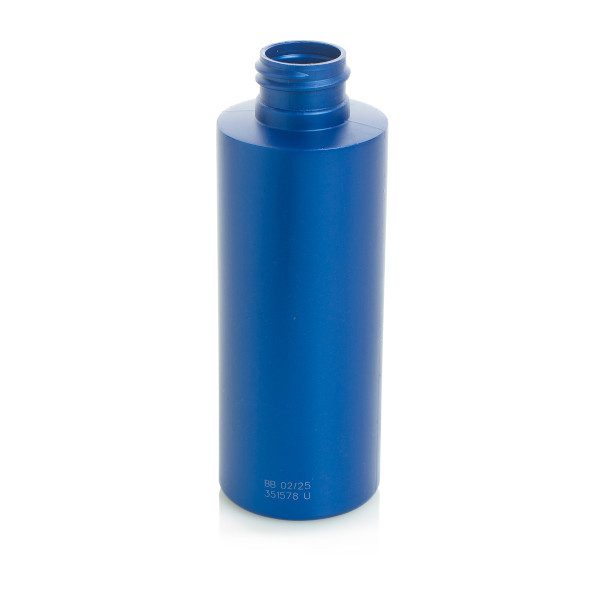

The Domino U510 delivers crisp, clear codes that are easily readable by both the human eye and optical scanners. It produces bright white codes on dark plastics and deep black codes on white or light-colored plastics. With 6W power at 100kHz, this high-performance laser is ideal for high-speed and continuous applications.
The compact all-in-one controller and laser unit simplify integration into production lines. Its fan-based cooling system eliminates the need for water or air supply connections. The adjustable U510 scan head can be mounted in both horizontal and vertical orientations for flexible installation.
The Domino U510 UV laser printer is IP55-certified, ensuring protection against dust and water for reliable long-term operation even in challenging production environments.
Informazioni Tecniche
| Coding Laser | |
|---|---|
| Laser Type | YVO4 – THG, Class 4 |
| Wavelength | 355 nm (invisibile) |
| Nominal Output Power | 6 W (from laser) / 4.5 W (from coder) |
| Laser Oscillation | Pulsed, 5–50ns duration, frequency 0–500 kHz |
| Focal Length / Marking Field | 160 mm / 100×100 mm, 330 mm / 207×207 mm, 480 mm / 326×326 mm |
| Integrated Aiming Laser | |
| Laser Type | Diode Laser, Class 2 |
| Wavelength | 655 nm (visible) |
| Laser Oscillation | Continuous Wave |
| Coder Specifications | |
| Electrical Requirements | 100-240 VAC, max. 3A, 50/60 Hz |
| Max Power Consumption | 300 VA |
| Max Peak Laser Power | 12 W |
| Supported Code Types & Characters | Logos, barcodes, 2D codes, graphics, text, etc. / 16 fonts, multilingual including full Unicode |
| Minimum Character Height | 0.6 mm |
| Dimensions & Weight | 601.5 x 233.6 x 201.7 mm (W x D x H) / 21 kg |
| Protection Rating | IP55 |
| Temperature Range | 10–40°C |
| Operating Humidity | Max. 90% RH, non-condensing |
| Cooling System | Air-cooled (fan) |
| Material Finish | Anodized aluminum |
| Performance level (PL) | ISO13849-1:2015 Category 4 PLe for safety inputs |
| Operating System | Laser Coder: Integrated Linux / User Interface: Windows® 10 |
| Optional Touchscreen | 10.4″ TouchPanel with LMEditor QS |
| Communication | Dynamark Protocol, Domino Cloud Interface (DCI) |
Domino reserves the right to modify product design, layout, or specifications without prior notice. Some of the information in this brochure is general in nature, and customers should verify its applicability to their specific needs.
