Domino V230i Thermal Transfer Printer
The Smart Solution for Thermal Transfer Printing
The Domino V230i thermal transfer printer is the ideal solution for printing on flexible packaging and labels, ensuring high-quality prints at extremely low costs.
Its compact design allows for easy integration into tight spaces and can be mounted onto existing support structures using a simple adapter plate. Installation takes less than an hour, and since the V230i is compatible with most label design and printer control software, you can start printing immediately without modifying your workflow or recreating messages.
The Domino V230i offers both low and high-speed printing (10-750 mm/sec), exceeding industry standards for most production lines while delivering exceptional print quality.
Additionally, the integrated printhead heating system ensures consistent coding quality, even in low-temperature operating environments.
Why Choose the Domino V230i Thermal Transfer Printer?
Seamless Integration for Food & Life Science Industries: The Domino V230i integrates perfectly with thermoforming and labeling lines across a wide range of food and life science applications. It enables the printing of variable data for the customization of generic packaging, making it easier to manage and highlight ingredients and allergens in compliance with new European regulations.
High-Quality Printing & Variable Data Capabilities: The V230i prints **300 dpi** text, logos, dynamic barcodes, and 2D codes with ease. It can also connect automatically to a database for printing variable data. The printhead is available in **32 mm and 53 mm** sizes to offer greater flexibility.
Eco-Friendly & Efficient Design: The V230i features a 40% weight reduction compared to its predecessor, minimizing its environmental impact. Additionally, its efficient ribbon management system reduces ribbon consumption by 60% and operates without compressed air, helping to limit VOC emissions.
Technical Information
Domino printers are compliant and sold in over 100 countries worldwide. Certifications: CE, NRTL, CB, and FCC 47CFR Part. 15B.
Printer Specifications
| V230i (32 mm) | V230i (53 mm) | |
|---|---|---|
| Printing Mode | Intermittent (IM) and Continuous (CM) on the same printer | Intermittent (IM) and Continuous (CM) on the same printer |
| Left/Right Orientation | Both options available (convertible in 15 min. without additional components) | Both options available (convertible in 15 min. without additional components) |
| Print Resolution | 300 dpi | 300 dpi |
| Max. Print Area (IM) | 32×55 mm | 53×55 mm |
| Max. Print Area (CM) | 32×500 mm | 53×500 mm |
| Max. Printing Speed (IM) | 400 mm/sec* | 400 mm/sec* |
| Speed Range (CM) | 10-750 mm/sec* | 10-750 mm/sec* |
| Max. Print Repetition Speed | 6 prints/sec (with a 10 mm print)* | 6 prints/sec (with a 10 mm print)* |
| Ribbon Technology | i-Tech with dancing arms for tension control | i-Tech with dancing arms for tension control |
| Max. Ribbon Length | 770 m (up to 1925 m effective length in Economy mode) | 770 m (up to 1925 m effective length in Economy mode) |
| Standard Ribbon Width | 34 mm, 22 mm | 55 mm, 34 mm |
Ribbon Saving Modes*
| Economy Mode | Increases ribbon lifespan by up to 60% | Increases ribbon lifespan by up to 60% |
| Retraction Mode | Less than 1 mm gap between prints | Less than 1 mm gap between prints |
| Column Mode | Yes | Yes |
| Stop Mid Print | Yes | Yes |
Printing Features
| Data Encoding Format | Yes | Yes |
| Offset | Yes | Yes |
| Shift Codes | Yes | Yes |
| Sequential Numbering | Yes | Yes |
| Fonts | Most TrueType fonts | Most TrueType fonts |
| Barcodes | Yes | Yes |
| Logos | Yes | Yes |
| Graphical Interface | QuickStep, color interface. Intuitive navigation through large, easy-to-read buttons and icons. WYSIWYG print preview. Multi-language support. | QuickStep, color interface. Intuitive navigation through large, easy-to-read buttons and icons. WYSIWYG print preview. Multi-language support. |
| Controller Options | No dedicated controller required. Hardware interface options:
|
No dedicated controller required. Hardware interface options:
|
| Connectivity | Ethernet / USB x2 / mini USB (service) | Ethernet / USB x2 / mini USB (service) |
* Performance depends on application type, substrate, and message length.
Variants

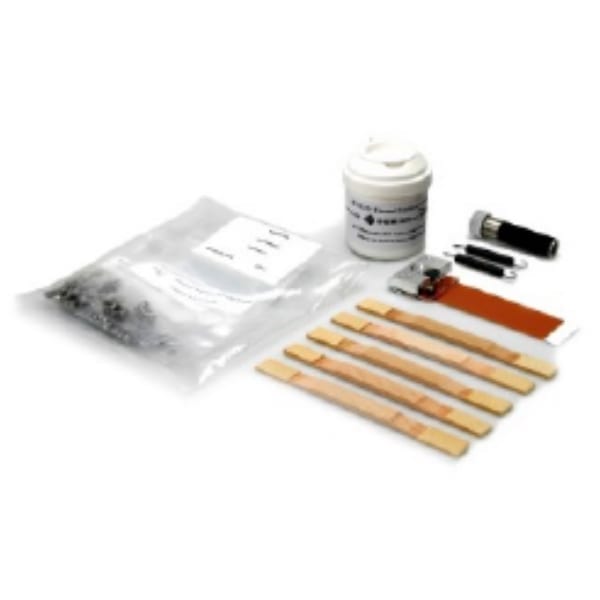

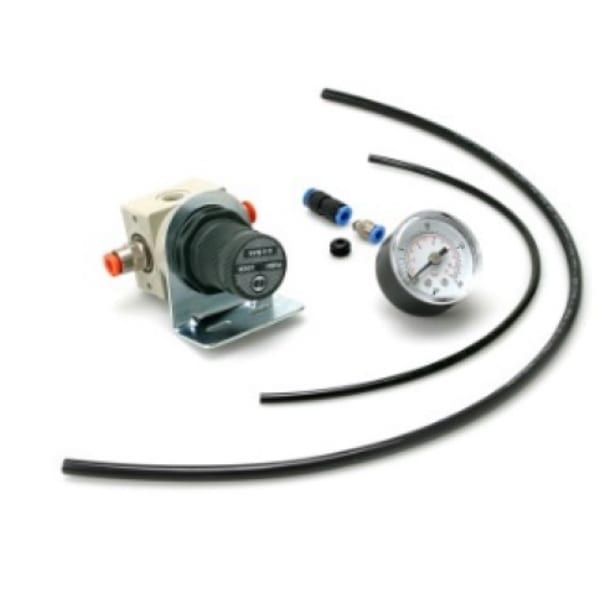

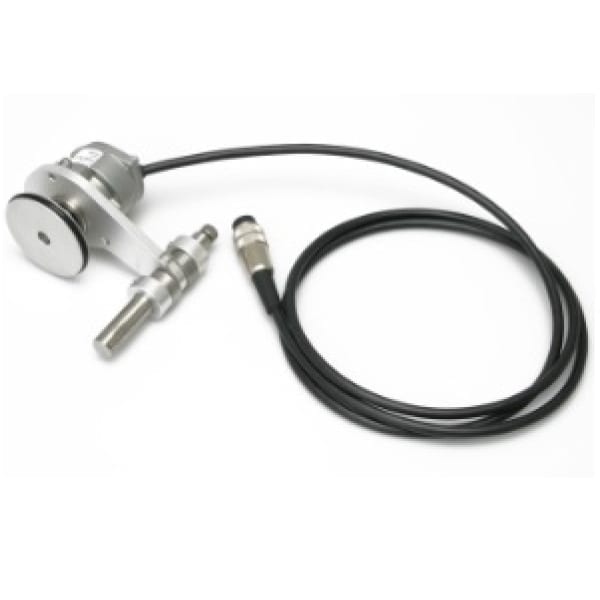

Accessories
Make the most of the Domino V-Series TTO printers by adding the right accessories for your production line.
