Domino Vx350i Thermal Transfer Printer
Uncompromised Performance and Quality
The Domino Vx350i is an industrial thermal transfer (TTO) printer capable of printing large, high-resolution codes, texts, and images on flexible films, foils, and labels, making it ideal for a wide range of flexible packaging applications.
The robust construction of the Domino Vx350i makes it the perfect choice for industries such as pharmaceutical, life sciences, and food production, especially on high-speed production lines and applications requiring complex dynamic codes with large amounts of variable data.
The Domino Vx350i meets both current and future production needs, achieving speeds of up to 8.3 prints per second, ensuring high-speed and reliable coding.
Designed for seamless integration into any packaging system, including labelers, flow wrappers, VFFS, and HFFS (vertical and horizontal form, fill, and seal machines). Its removable cassette is washable and features a protected connector, making it suitable for demanding production environments.
Why Choose the Domino Vx350i Thermal Transfer Printer?
Advanced Ribbon-Saving Technology: The direct transmission printer provides intelligent ribbon-saving modes, reducing ribbon consumption by up to 60% per print.
High-Quality, Machine-Readable Codes: Prints clear and legible 2D codes, including QR codes and Data Matrix, enhancing traceability and supply chain transparency. Fully compliant with major industry standards, including GS1 Digital Link.
Increased Productivity & Reduced Downtime: Long-lasting ribbons (up to 1200m) help maximize production efficiency and minimize downtime caused by ribbon changes.

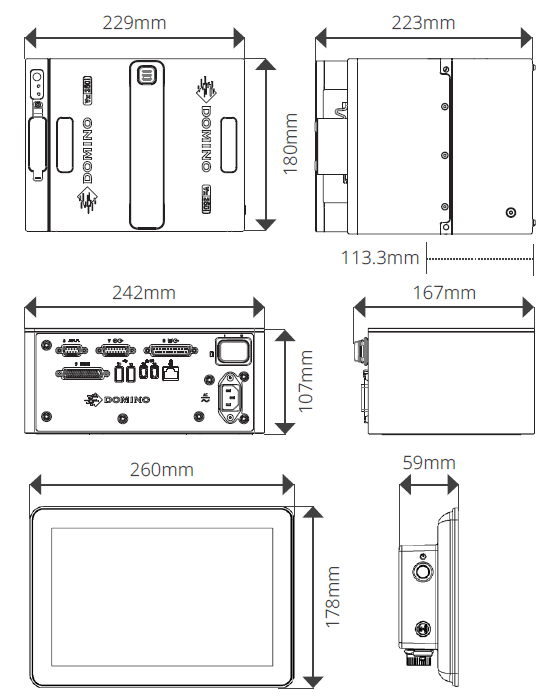

Technical Information
Domino printers are compliant and sold in over 100 countries worldwide. Certifications: CE, NRTL, CB, and FCC 47CFR Part. 15B.
Technical Specifications
| Intermittent Mode (IM) | Continuous Mode (CM) | |
|---|---|---|
| Printing Mode | ✓ | ✓ |
| Print Resolution | 300 dpi | 300 dpi |
| Printing Speed | Up to 600 mm/sec | From 10 to 750 mm/sec (standard) From 10 to 1200 mm/sec (advanced package) |
| Maximum Print Frequency | 6 prints/sec (standard) 8.3 prints/sec (advanced package) |
6 prints/sec (standard) 8.3 prints/sec (advanced package) |
| Print Area | 53X75 mm | 53×500 mm (standard) 53X750 mm (advanced package) |
| Printhead Width | 53 mm | 53 mm |
| Start Print Area Distance – Rear Side | 113.3 mm (117 mm including wiring space) | 113.3 mm (117 mm including wiring space) |
| Maximum Ribbon Length | 1200m (AR) | 1200m (AR) |
| Ribbon Width | 34mm and 55mm | 34mm and 55mm |
| Printer Connectors | 2 USB, 1 GPIO, 1 encoder | 2 USB, 1 GPIO, 1 encoder |
| Interface Box Connectors | USB, 1 RJ45, 2 GPIO, 1 encoder, 2 IX ports, 1 printer connection port | USB, 1 RJ45, 2 GPIO, 1 encoder, 2 IX ports, 1 printer connection port |
| Weight | 9.1 kg | 9.1 kg |
| Cartridge Weight | 1.7 Kg (without ribbon) | 1.7 Kg (without ribbon) |
| Fully Electric | No compressed air required | No compressed air required |
| Power Supply | Printer without interface box: 48V, 6.3A, 300W Printer with interface box: 100-240VAC, 50/60Hz |
Printer without interface box: 48V, 6.3A, 300W Printer with interface box: 100-240VAC, 50/60Hz |
| Operating Temperature / Humidity | 5 to 40°C / 10% to 90% RH | 5 to 40°C / 10% to 90% RH |
| Protection Rating | IP55 when the protection kit is installed (non-operational) | IP55 when the protection kit is installed (non-operational) |
| Ribbon Saving Modes | Economy, Retraction, Column | Economy, Retraction, Column, Mid Print Halt |
| Protocol | Dynamark | Dynamark |
| Tablet Connection | Via Wi-Fi dongle | Via Wi-Fi dongle |
| PC Connection | Via Ethernet cable | Via Ethernet cable |
| TouchPanel6 (Optional) | 10.1″ touchscreen – multi-language support | 10.1″ touchscreen – multi-language support |
| Support Frame (Optional) | Complete range of support stands for all needs | Complete range of support stands for all needs |
